How is Iron Oxide Pigment Made?

Aug. 14, 2024

Iron oxide pigments are widely used in various industries due to their excellent color stability, non-toxicity, and cost-effectiveness. They come in several colors, including red, yellow, and black, and are used in applications ranging from paints and coatings to construction materials and cosmetics. This article explains the manufacturing process of iron oxide pigments, highlighting the steps involved and the methods used to produce different colors.

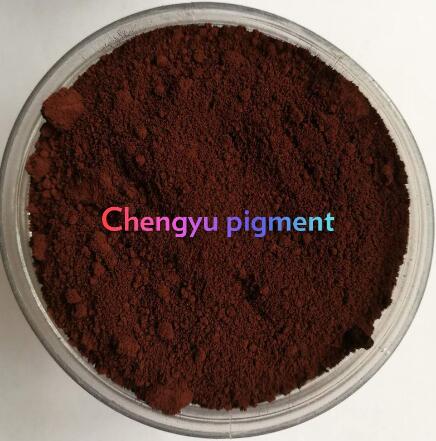

Iron Oxide Brown



Raw Materials and Preparation

The production of iron oxide pigments begins with raw materials, primarily iron sources such as iron salts (e.g., ferrous sulfate) or iron scrap. Other chemicals like sodium hydroxide and hydrochloric acid are also used in the process.


Synthetic Production Methods

There are two main synthetic methods for producing iron oxide pigments: the precipitation method and the thermal decomposition method.


Precipitation Method

The precipitation method is the most common process for producing red and yellow iron oxide pigments. This method involves the following steps:


Dissolution: Iron salts, such as ferrous sulfate, are dissolved in water to form a solution.

Precipitation: Sodium hydroxide is added to the solution to precipitate iron hydroxide. The pH of the solution is carefully controlled to ensure proper precipitation.

Oxidation: The precipitated iron hydroxide is then oxidized to form iron oxide. This can be done using air or chemical oxidizing agents. The oxidation process determines the final color of the pigment. For example, controlled oxidation of iron hydroxide yields yellow iron oxide, while further oxidation results in red iron oxide.

Filtration and Washing: The iron oxide pigment is filtered and washed to remove impurities and by-products.

Drying and Milling: The washed pigment is dried and milled to achieve the desired particle size and consistency.

Thermal Decomposition Method

The thermal decomposition method is primarily used to produce black iron oxide pigment. This method involves the following steps:


Preparation of Precursor: An iron salt precursor, such as iron chloride or iron sulfate, is prepared.

Thermal Decomposition: The precursor is heated to high temperatures (around 800-900°C) in a controlled environment. During this process, the iron salt decomposes, and black iron oxide (magnetite) is formed.

Cooling and Grinding: The resulting black iron oxide is cooled and then ground to the desired particle size.


Natural Iron Oxide Pigments

In addition to synthetic methods, natural iron oxide pigments can be obtained from mineral sources such as hematite, goethite, and magnetite. These minerals are mined, ground, and processed to produce pigments with varying shades of red, yellow, and black. However, natural pigments often require further processing to ensure color consistency and remove impurities.


Quality Control and Testing

Throughout the manufacturing process, stringent quality control measures are implemented to ensure the pigments meet industry standards. This includes testing for color strength, particle size distribution, and chemical composition. Consistent quality control ensures the pigments perform reliably in their intended applications.


Environmental Considerations

The production of iron oxide pigments involves managing environmental impacts, particularly in terms of waste disposal and emissions. Modern manufacturing facilities employ techniques to minimize waste and recycle by-products wherever possible. Efforts are also made to reduce energy consumption and greenhouse gas emissions, making the production process more sustainable.


Conclusion

The production of iron oxide pigments involves a combination of chemical reactions, controlled conditions, and precise processing techniques to achieve the desired colors and qualities. Whether produced synthetically or sourced from natural minerals, iron oxide pigments play a vital role in numerous industries. Understanding the manufacturing process helps in selecting the right type of pigment for specific applications. For further details or to find a reliable supplier, feel free to contact us.
